BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm

BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm

Get a Quote
Product Description
Product details
4K hot sale BOE 86 inch stretched bar LCD panel DV860FBM-N10 with 3840(RGB)*600,1000 nits, 50K hours,outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm factory
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm supplier
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm details
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm manufacture
Product Description
4K hot sale BOE 86 inch stretched bar LCD panel DV860FBM-N10 with 3840(RGB)*600,1000 nits, 50K hours,outline size 2178*360mm
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm factory

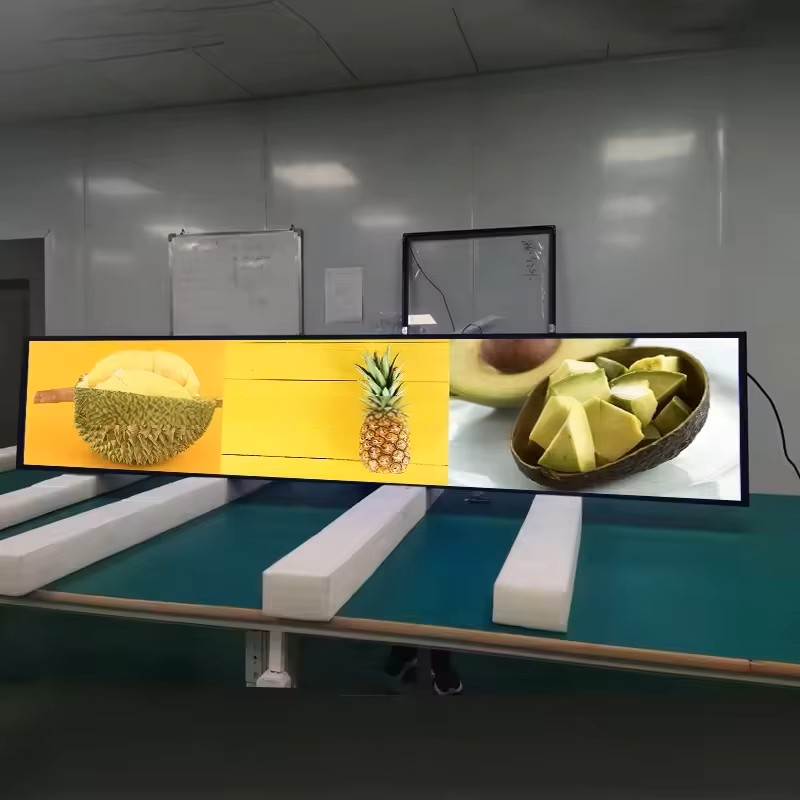

Front View&Back View
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm manufacture
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm manufacture
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm supplier

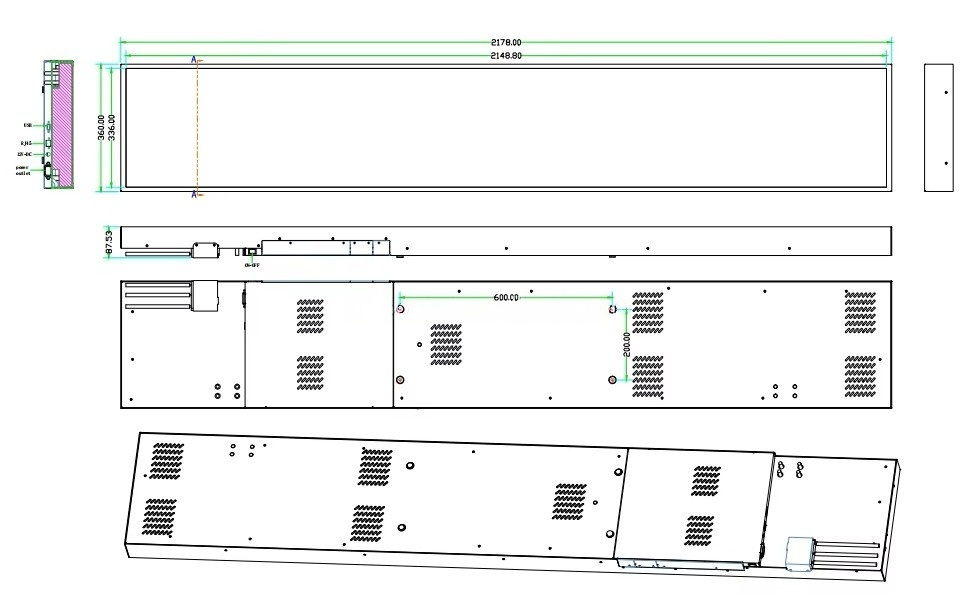

Design drawings
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm details
The data of the panel
Panel
DV860FBM-N10
Brand
BOE
Resolution
3840(RGB)×600 45PPI
Diagonal Size
86" (Native bar)
Active area
2148.48(W)×335.7(H) mm
Response
13 (Typ.)(G to G) ms
Viewing angle
89/89/89/89 (Typ.)(CR≥10)
Voltage Supply
12V (Typ.)
Display mode
ADS, Normally Black, Transmissive
Signal Type
V-by-One 8 lane , Connector 51 pins
Contrast ratio
1200:1 (Typ.) (TM)
Luminance
1000 cd/m² (Typ.)
Max. Ratings
Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C
Customize everything you want
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm factory
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm supplier
If you need,please contact us,thanks!
Email: [email protected]
Product Usage
BOE 86 inch stretched bar tft LCD display panel DV860FBM-N10 with 3840(RGB)*600,1000 nits 50K hours outline size 2178*360mm factory
