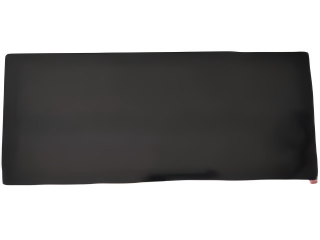

BOE 15 inch high brightness LCD panel AV150Z7T-N12-58P0 support 720(RGB)*1920, 950 nits,High brightness LCD screen

Product Description

Product details

BOE 15 inch high brightness LCD panel AV150Z7T-N12-58P0 support 720(RGB)*1920, 950 nits,High brightness LCD screen

BOE 15 inch high brightness LCD panel AV150Z7T-N12-58P0 support 720(RGB)*1920, 950 nits,High brightness LCD screen supplier

Product Description

BOE 15 inch high brightness LCD panel AV150Z7T-N12-58P0 support 720(RGB)*1920, 950 nits,High brightness LCD screen

BOE 15 inch high brightness LCD panel AV150Z7T-N12-58P0 support 720(RGB)*1920, 950 nits,High brightness LCD screen details

The data of the panel

Model P/N	AV150Z7T-N12-58P0	Brand	BOE
Active area	133.38(W)×355.68(H) mm	Resolution	720(RGB)×1920 137PPI
Outline (mm)	168.41(W)×391.22(H) ×14.16(D) mm	Bezel Opening	-
Treatment	Anti Fingerprint, Hard coating (3H), Antireflection	Color Depth	16.7M 70% NTSC
Viewing angle	85/85/85/85 (Typ.)(CR≥10)	Diagonal Size	15 inch
Display mode	ADS, Normally Black, Transmissiv	Interface Type	LVDS (2 ch, 8-bit) , 60 pins Connector
Contrast ratio	1000 : 1 (Typ.) (TM)	Power Supply	3.3/6.3/-6.3/16.8/-11V (Typ.)(DVDD/VSP/VSN/VGH/VGL)
Luminance	950 (Typ.)(cd/m²)	Response Time	30 (Typ.)(Tr+Td)
Environment	Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C

Product Usage

Related Products

Packing&Shipping

1.About the test

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

3.About the Shipping

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
