19 inch high brightness LCD panel NL128102BM29-08 support 1280(LCR)*1024, 1000 nits, High brightness LCD screen

Product Description

Product details

19 inch high brightness LCD panel NL128102BM29-08 support 1280(LCR)*1024, 1000 nits, High brightness LCD screen

Product Description

19 inch high brightness LCD panel NL128102BM29-08 support 1280(LCR)*1024, 1000 nits, High brightness LCD screen

The data of the panel

Model P/N	NL128102BM29-08	Brand	nec
Active area	376.32(W)×301.056(H) mm	Resolution	1280(LCR)×1024, SXGA 86PPI
Outline (mm)	404.2(W)×330(H) mm	Bezel Opening	-
Treatment	-	Color Depth	Grayscale
Viewing angle	88/88/88/88 (Typ.)(CR≥10)	Diagonal Size	19 inch
Display mode	SA-SFT, Normally Black, Transmissive	Interface Type	LVDS (2 ch, 8-bit)
Contrast ratio	900:1 (Typ.) (TM)	Power Supply	5.0V (Typ.)
Luminance	1000 cd/m² (Typ.)	Response Time	35 (Typ.)(Tr+Td)
Environment	Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -20 ~ 60 °C

Product Usage

Related Products

Packing&Shipping

1.About the test

2.About the Packing

EPE with Carton with Carton & Plywood case EPE with Carton&Pallet

3.About the Shipping

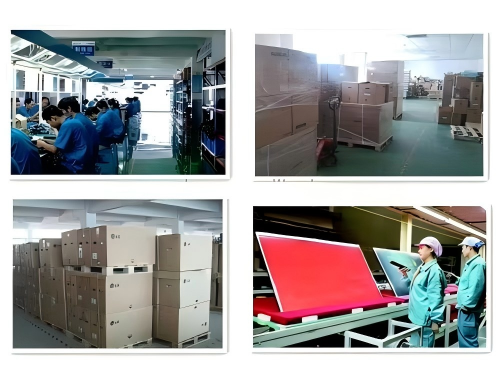

Company Introduction

Shenzhen Caison Technology co., LTD. Is a professional LCD module solution provider.Our product include:
Transparent OLED display（30 inch/49 inch/55 inch）

Round LCD display

Square LCD display

stretched Bar LCD display

LCD advertising machine (4.3 inch -110 inch )

LCD/LED panel(4.3 inch -110 inch );
High brightness panel(1000 -7000 brightness)

LCD kits(1080P-8K LCD controller board,Android board/Media player board, LVDS cable ,Inverter board, OSD board,Remote controll ,
Power supply,Power adapter);
Touch panel(Resistive touchscreen,IR touchscreen,Capacitance touchscreen);

We accept all kinds of customized products, including LCD screen, cable, many kind of the board (1080P-5K LCD controller
board,Android board/Media player board),Shell.....All products can be printed with your logo.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....

Welcome you esteemed partners to visit us and start business on mutual benefits together. Thanks!

FAQ

1. Are you a factory or a trading company?
A: We are an OEM / ODM factory.
2. Can I customize the product? and can I add logo to the products?
A: We can customize any products according to any requirements of customers, such as motherboard, cable, shell .... We can also
add your logo to the product.
3. What is the warranty period of the product?
A: According to different products, our warranty time is 1 - 3 years.
4. Why choose your company?
A: We are Alibaba's 5-year faithful member, and the transaction score is always full score.
We are a factory, with certain price advantage and professional and fast technical service support.
We can also apply for certificates for customers' products.Such CE ,SASO, KC, BIS, PSE and CE, FCC, RoHS to UL.....
5. What method of payment is accepted?
A: We accept most payment methods, but mainly wire transfer, letter of credit, Western Union, paypal and MoneyGram.
6. What is the delivery time and mode of transportation?
If it is not a customized product, the sample and small orders are 1-3 days,
And the order quantity meets more than 2000 sets, which takes 5-15 days.
There are DHL, UPS, TNT and FedEx for fast transportation.
Slow and cheap modes of transportation include sea transportation, EMS, and postal parcels.
